What is the word meaning of explicit

Stated clearly and in detail, leaving no room for confusion or doubt.

When does a SAS DATA step write an observation to the output dataset

A DATA step normally writes the contents of the Program Data Vector as an observation when SAS reaches a step boundary
A `run` statement, a new `data` statement, or a `proc` statement can act as a step boundary

What does an explicit OUTPUT statement do

An `output` statement explicitly tells SAS to write the current contents of the PDV to one or more output datasets
Once at least one explicit `output` statement is used, SAS no longer performs the normal implicit output at the end of the iteration
This gives the programmer precise control over when and where observations are written

Different step boundary scenarios

RUN statement as step boundary

data class01;
   set sashelp.class;
run;

PROC statement as step boundary for the DATA step

data class02;
   set sashelp.class;

proc sort data=class02;
   by age;
run;

DATA statement as step boundary for the first DATA step

The DATA statement that starts the second step also ends the first step

data class03;
   set sashelp.class;

data class04;
   set sashelp.class;
run;

What happens when a step boundary is not present

If a submitted step has no step boundary, SAS waits because the step is incomplete
The same idea applies to incomplete PROC steps as well

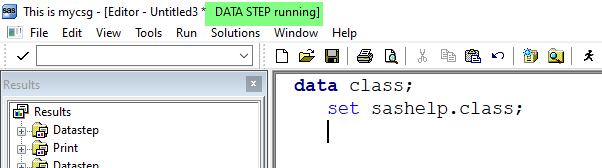

A DATA step without a step boundary

data class05;
   set sashelp.class;

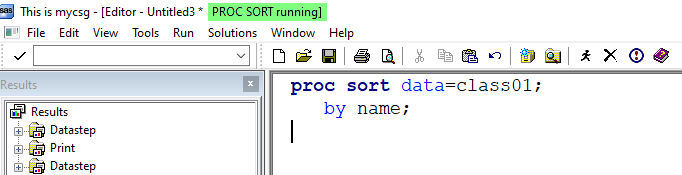

A PROC step without a step boundary

proc sort data=class05;
   by name;

Replacing implicit output with an explicit OUTPUT statement

Basics of the explicit OUTPUT statement

Implicit output happens automatically at the end of the DATA step iteration when no explicit output statement is present
If we add `output;` explicitly, SAS writes the observation at that point in the code
The following two DATA steps produce the same final rows even though one uses implicit output and the other uses explicit output

data class_i;
   set sashelp.class;
   agemon=age*12;
run;

data class_e;
   set sashelp.class;
   agemon=age*12;
   output;
run;

Inspect `class_i` and `class_e` and confirm that the datasets match

Multiple explicit OUTPUT statements

Each time SAS encounters an `output` statement, it writes the current PDV contents as an observation
If multiple output statements are executed during the same iteration, the same input observation can create multiple output rows

data class;
   set sashelp.class;
run;

data class01;
   set sashelp.class;
   output;
   output;
run;

data class02;
   set sashelp.class;
   output;
   output;
   output;
run;

`class01` contains twice as many observations as `sashelp.class`
`class02` contains three times as many observations as `sashelp.class`

Mention the name of the output dataset on the OUTPUT statement

The output dataset name can be listed explicitly on the `output` statement
This becomes especially important when a single DATA step creates more than one output dataset

data class01;
   set sashelp.class;
   output;
run;

data class02;
   set sashelp.class;
   output class02;
run;

data class03;
   set sashelp.class;
run;

All three datasets contain the same rows in this example
The difference is only in how the observation writing instruction is expressed

Create multiple datasets in a single DATA step

More than one dataset name can be listed on the DATA statement
With implicit output, each observation is written to all output datasets listed on the DATA statement
With explicit output, we can write to all or selected output datasets

data copy1 copy2;
   set sashelp.class;
run;

data copy11 copy12;
   set sashelp.class;
   output;
run;

data copy21 copy22;
   set sashelp.class;
   output copy21 copy22;
run;

data copy31 copy32;
   set sashelp.class;
   output copy31;
   output copy32;
run;

data copy1 copy2;
set sashelp.class;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY1 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY1 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY2 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY2 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.03 seconds
cpu time            0.01 seconds



data copy11 copy12;
set sashelp.class;
output;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY11 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY11 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY12 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY12 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.00 seconds
cpu time            0.00 seconds



data copy21 copy22;
set sashelp.class;
output copy21 copy22;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY21 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY21 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY22 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY22 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds



data copy31 copy32;
set sashelp.class;
output copy31;
output copy32;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY31 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY31 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY32 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY32 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds

Examine the log and the output datasets to compare how many observations are written in each case

Test your understanding: how many observations will be present in each output dataset

The answer can be confirmed by checking the log and dataset views
`sashelp.class` contains 19 observations

data copy11 copy12 copy13;
   set sashelp.class;
   output copy11 copy12;
   output copy13;
run;

data copy21 copy22 copy23;
   set sashelp.class;
   output copy21 copy22;
run;

data copy31 copy32 copy33;
   set sashelp.class;
   output copy31 copy32;
   output;
run;

data copy11 copy12 copy13;
set sashelp.class;
output copy11 copy12;
output copy13;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY11 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY11 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY12 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY12 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY13 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY13 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds



data copy21 copy22 copy23;
set sashelp.class;
output copy21 copy22;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY21 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY21 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY22 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY22 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY23 has 0 observations and 5 variables.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds



data copy31 copy32 copy33;
set sashelp.class;
output copy31 copy32;
output;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.COPY31 has 38 observations and 5 variables.
NOTE: Compressing data set WORK.COPY31 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY32 has 38 observations and 5 variables.
NOTE: Compressing data set WORK.COPY32 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.COPY33 has 19 observations and 5 variables.
NOTE: Compressing data set WORK.COPY33 increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds

Use the explicit OUTPUT statement to create data subsets

Conditional logic plus explicit output lets one DATA step split observations into multiple output datasets
This is one of the most practical uses of the explicit OUTPUT statement

data class;
   set sashelp.class;
run;

data cars;
   set sashelp.cars;
run;

data males females;
   set sashelp.class;
   if sex="F" then output females;
   if sex="M" then output males;
run;

data preteen teen;
   set sashelp.class;
   if age lt 13 then output preteen;
   else if 13 le age le 19 then output teen;
run;

data sedan sports others;
   set sashelp.cars;
   if upcase(type)="SEDAN" then output sedan;
   else if upcase(type)="SPORTS" then output sports;
   else output others;
run;

data class;
set sashelp.class;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.CLASS has 19 observations and 5 variables.
NOTE: Compressing data set WORK.CLASS increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds



data cars;
set sashelp.cars;
run;

NOTE: There were 428 observations read from the data set SASHELP.CARS.
NOTE: The data set WORK.CARS has 428 observations and 15 variables.
NOTE: Compressing data set WORK.CARS decreased size by 0.00 percent.
Compressed is 2 pages; un-compressed would require 2 pages.
NOTE: DATA statement used (Total process time):
real time           0.00 seconds
cpu time            0.01 seconds



data males females;
set sashelp.class;
if sex="F" then output females;
if sex="M" then output males;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.MALES has 10 observations and 5 variables.
NOTE: Compressing data set WORK.MALES increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.FEMALES has 9 observations and 5 variables.
NOTE: Compressing data set WORK.FEMALES increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.00 seconds
cpu time            0.00 seconds



data preteen teen;
set sashelp.class;
if age lt 13 then output preteen;
else if 13 le age le 19 then output teen;
run;

NOTE: There were 19 observations read from the data set SASHELP.CLASS.
NOTE: The data set WORK.PRETEEN has 7 observations and 5 variables.
NOTE: Compressing data set WORK.PRETEEN increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.TEEN has 12 observations and 5 variables.
NOTE: Compressing data set WORK.TEEN increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.01 seconds
cpu time            0.00 seconds



data sedan sports others;
set sashelp.cars;
if upcase(type)="SEDAN" then output sedan;
else if upcase(type)="SPORTS" then output sports;
else output others;
run;

NOTE: There were 428 observations read from the data set SASHELP.CARS.
NOTE: The data set WORK.SEDAN has 262 observations and 15 variables.
NOTE: Compressing data set WORK.SEDAN increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.SPORTS has 49 observations and 15 variables.
NOTE: Compressing data set WORK.SPORTS increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: The data set WORK.OTHERS has 117 observations and 15 variables.
NOTE: Compressing data set WORK.OTHERS increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time           0.00 seconds
cpu time            0.00 seconds

One input dataset can be split into several targeted output datasets in a single pass
Inspect the outputs and confirm that each observation went to the intended dataset

Key points to remember

Without an explicit output statement, SAS writes observations implicitly at the end of the iteration
Once explicit output is used, the programmer controls when and where observations are written
Explicit output is useful for duplication, routing, and subsetting of observations

*Copyright @ www.mycsg.in;

What is the word meaning of explicit

When does a SAS DATA step write an observation to the output dataset

What does an explicit OUTPUT statement do

Different step boundary scenarios

RUN statement as step boundary

SAS Log

PROC statement as step boundary for the DATA step

SAS Log

DATA statement as step boundary for the first DATA step

SAS Log

What happens when a step boundary is not present

SAS Log

Data Step Running Screenshot

SAS Log

Proc Step Running Screenshot

Replacing implicit output with an explicit OUTPUT statement

Basics of the explicit OUTPUT statement

SAS Log

Dataset View

Multiple explicit OUTPUT statements

SAS Log

Dataset View

Mention the name of the output dataset on the OUTPUT statement

SAS Log

Dataset View

Create multiple datasets in a single DATA step

SAS Log

Dataset View

Test your understanding: how many observations will be present in each output dataset

SAS Log

Use the explicit OUTPUT statement to create data subsets

SAS Log

Dataset View

Key points to remember
